Two Post
Four Post
Short Platform
Long Platform
Heavy Duty
Motorcycle Lift
Rolling Jack
Lifting Table
E25 | 11000LBS. Two independent columns
● With a maximum capacity of 5000kg(11000lbs), it is especially suitable for lifting large pickups, SUVs, MPVs, vans, small caravans, medium buses and light trucks.
● No more obstructions at your feet and let you and your tool cart move easier under the lifted vehicle.
● No more obstructions at your feet and let you and your tool cart move easier under the lifted vehicle.
F12/F10/F9 | 12000LBS./10000LBS./9000LBS. One side manual release
● 12000LBS. /10000LBS. /9000LBS. Lifting capacity
● 74 13/16" lifting height
● One side operation
● 74 13/16" lifting height
● One side operation
C12S | 12000LBS. One side manual release
● 12000LBS. Lifting capacity
● 4 5/16” min. Height (C12S),
● 74 3/4” Lifting height
● One side safety locks release
● 4 5/16” min. Height (C12S),
● 74 3/4” Lifting height
● One side safety locks release
C12/C10/C9 | 12000LBS./10000LBS./9000LBS. One side manual release
● 12000LBS. /10000LBS. /9000LBS. Lifting capacity
● 74 3/4" max lifting height (C12/C10), 74 3/4" or 70 7/8" max lifting height (C9)
● One side safety locks release
● 74 3/4" max lifting height (C12/C10), 74 3/4" or 70 7/8" max lifting height (C9)
● One side safety locks release
64P2 | 7000LBS. Parking Lift
● 7000lbs. lifting capacity
● 72 13/16” lifting height
● 168 1/2” longer runways
● Two parking lifts share one power unit
● 72 13/16” lifting height
● 168 1/2” longer runways
● Two parking lifts share one power unit
6445P | 10000LBS. Parking Lift
● 10000 lbs. lifting capacity
● 77 9/16” lifting height
● 192 15/16” longer runways
● Standard oil drip pan and jack tray
● 77 9/16” lifting height
● 192 15/16” longer runways
● Standard oil drip pan and jack tray
6435.S | 12000LBS. Four Post Lift
● Flat platform for general service use
● Electrical Safety Lock Release System (E version)
● 222 9/16” Max. platform length
● Reliable mechanical safety locking system
● Electrical Safety Lock Release System (E version)
● 222 9/16” Max. platform length
● Reliable mechanical safety locking system
6435.B | 12000LBS. Four Post Lift
● Long slip plate and adjustable turntable positions for alignment use
● Electrical Safety Lock Release System (E version)
● 222 9/16” Max. platform length
● Electrical Safety Lock Release System (E version)
● 222 9/16” Max. platform length
6435.B.PD | 12000LBS. Four Post Lift
● MOT four post lifts for Class IV&VII vehicles
● Electrical Safety Lock Release System (E version)
● 222 9/16” Max. platform length
● Reliable mechanical safety locking system
● Electrical Safety Lock Release System (E version)
● 222 9/16” Max. platform length
● Reliable mechanical safety locking system
6435.BWF | 12000LBS. Four Post Lift
● Electrical Safety Lock Release System (E version)
● 222 9/16” Max. platform length
● Standard Wheel Free Lift witch with 10000 lbs. lifting capacity
● 222 9/16” Max. platform length
● Standard Wheel Free Lift witch with 10000 lbs. lifting capacity
65A-40T | 10000LBS. Full Rise Scissor Lift
● 10000lbs. lifting capacity
● 5 1/8” drive-on height
● 76” Max. Lifting height
● Above-ground or in-ground installation
● 5 1/8” drive-on height
● 76” Max. Lifting height
● Above-ground or in-ground installation
6503 | 9000LBS. Full Rise Scissor Lift
● Automatic Leveling System or electrical leveling available
● Extendable platform, one side or double sides for long vehicles
● In-ground installation
● Extendable platform, one side or double sides for long vehicles
● In-ground installation
MR35 | 8000LBS. Mid Rise Scissor Lift
● 8000 lbs. lifting capacity
● 4 5/16” drive-on height
● Starting-Up plate, for easy raising from low point
● Mobile or fixed mount design
● 4 5/16” drive-on height
● Starting-Up plate, for easy raising from low point
● Mobile or fixed mount design
6501 | 7000LBS. Full Rise Scissor Lift
● 7000lbs. lifting capacity
● 4 5/16” drive-on height
● Starting up plate ensures quiet ground touching
● Above-ground or in-ground installation
● 4 5/16” drive-on height
● Starting up plate ensures quiet ground touching
● Above-ground or in-ground installation
TS6600 | 6600LBS. Mid Rise Scissor Lift
● 6600 lbs. lifting capacity
● Portable, easy to move
● Double safety ,hydraulic and mechanical
● Portable, easy to move
● Double safety ,hydraulic and mechanical
HX6BWF | 15000LBS. Long Platform Scissor Lift
● 15000 lbs. lifting capacity
● Long flat runways for general service use
● Electrical levelling
● Standard Wheel Free Lift
● Long flat runways for general service use
● Electrical levelling
● Standard Wheel Free Lift
6603 Series | 10000LBS./12000LBS. Alignment Scissor Lift
● Standard Wheel Free Lift
● 200 13/16” Max. Platform Length
● Automatic Leveling System or electrical leveling available
● 200 13/16” Max. Platform Length
● Automatic Leveling System or electrical leveling available
LX40 | 10000LBS.Alignment Scissor Lift With Wheel-free Service
● With a maximum lifting capacity of 4000kg and a runway length of 4500, it can well adapts to various sports cars, sedans, SUVs, MPVs, Pick-ups and medium sized RVs.
● It can retract as low as 160mm making it is suitable for surface installation. No more laborious job to make a pit for recessed installation.
● It can retract as low as 160mm making it is suitable for surface installation. No more laborious job to make a pit for recessed installation.
HDM Series | 18000LBS./22000LBS. Heavy Duty Mobile Column
●18000LBS./22000LBS. capacity per column
● Multiple group combinations (4,6,8 or 10 columns in a group)
● Wireless Communication
● STM32 microchip technology in the control system
● Communicate wirelessly by WLAN or be connected by cables
● Multiple group combinations (4,6,8 or 10 columns in a group)
● Wireless Communication
● STM32 microchip technology in the control system
● Communicate wirelessly by WLAN or be connected by cables
HX6 | 15000LBS. Long Platform Scissor Lift
●15000 lbs. lifting capacity
● Long flat runways for general service use
● Electrical levelling
● All versions, S, B, BWF,BPD platforms
● Long flat runways for general service use
● Electrical levelling
● All versions, S, B, BWF,BPD platforms
MLH10 | 2200LBS. Heavy-duty Motorcycle Lift
● 2200 LBS. lifting capacity
● Hydraulic driven system, smooth running
● Applicable to motorcycles, ATVS, lawn mower etc.
● Hydraulic driven system, smooth running
● Applicable to motorcycles, ATVS, lawn mower etc.
CJ | 7000LBS. Rolling Jack
●7000LBS. lifting capacity
● Durable and compact scissor carrying structure
● Adjustable width between support wheels to fit different widths between runways
● Durable and compact scissor carrying structure
● Adjustable width between support wheels to fit different widths between runways
SCJ | 7000LBS. Rolling Jack
● 7000LBS. lifting capacity
● Durable and compact scissor carrying structure
● Adjustable width between support wheels to fit different widths between runways
● Durable and compact scissor carrying structure
● Adjustable width between support wheels to fit different widths between runways
MS12M | 3000LBS. Hydraulic Mobile Lifting Table
This mobile lifting table is designed for dismantling and fixing batteries of electric vehicles as well as engine, gearbox, drive axle, fuel tank,suspension, bracket and chassis components of traditional vehicles.
MS10 | 2500LBS. Mobile Lifting Table
This mobile lifting table is designed for dismantling and fixing batteries of electric vehicles as well as engine, gearbox, drive axle, fuel tank,suspension, bracket and chassis components of traditional vehicles.
Manual Download
Technical Data
Details

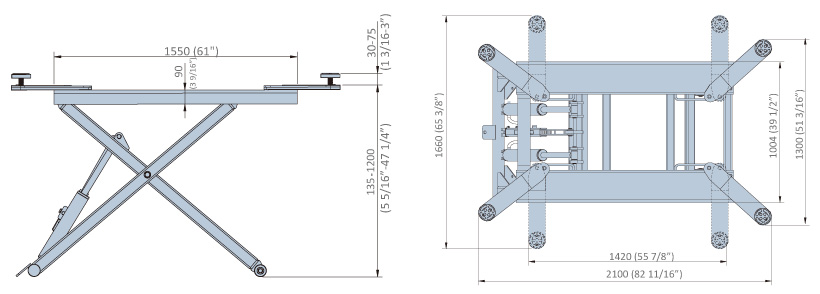

Overall Dimension
