·12000LBS./10000LBS./9000LBS. lifting capacity
· 74 13/16" lifting height
·Base Plate type design for low ceiling workshops and garages
·One side operation
·Durable cylinders in each column carry with anti-surge valves
·Screw-up lifting pads with clearance height less than 3 15/16"
·The arm locks engage automatically when the lift is raised and disengage when lowered fully

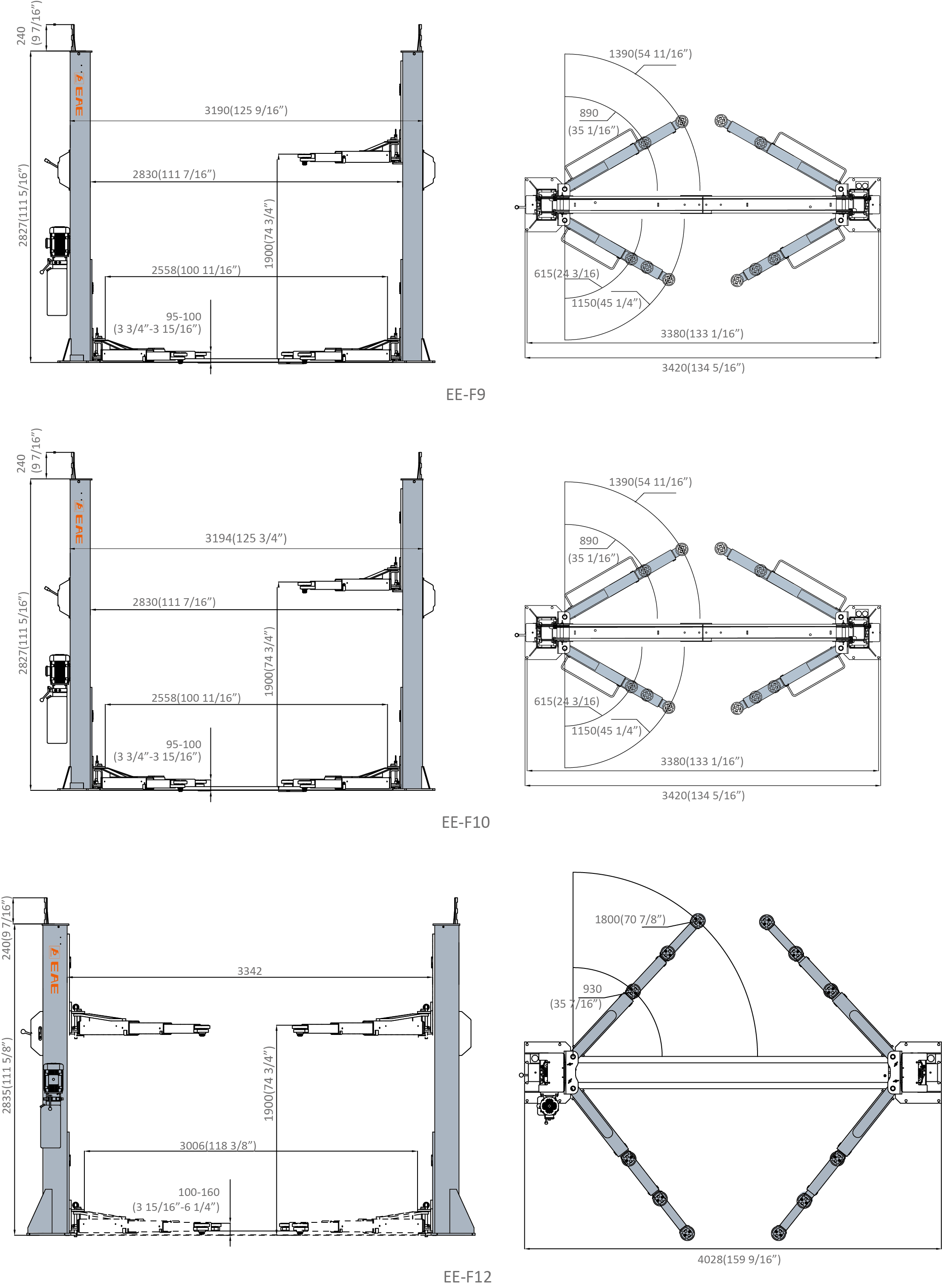

MODEL NO. | F12 | F10 | F9 |
Lifting Capacity | 12000LBS. | 10000LBS. | 9000LBS. |
Max Lifting Height | 74 13/16" | 74 13/16" | 74 13/16" |
Min Height | 3 15/16" | 3 3/4" | 3 3/4" |
Drive Through | 118 3/8" | 100 11/16" | 100 11/16" |
Lifting Time | 45S - 55S | 45S - 55S | 45S - 55S |
Capacity of Motor | 3hp/5hp | 3hp/5hp | 3hp/5hp |
Overall Height | 111 5/16” | 111 5/16” | 111 5/8” |
Electricity Supply | According To Customer Needs |
Door Protection Pads
Round Screw-up Liing Pad
Single Side Release
Strong Carriage and Arm Structure
Quick Arm
Three Stage Thin Arm(F9/F10)
Three Stage Short Arms(F9/F10)
Three Stage Short Arms(F9/F10)
Short Sleeve
Tool Tray
U-shapedTray Assembly
Square Tray Assembly
Round Tray Assembly
Off-road Vehicles and Commercial Vans
